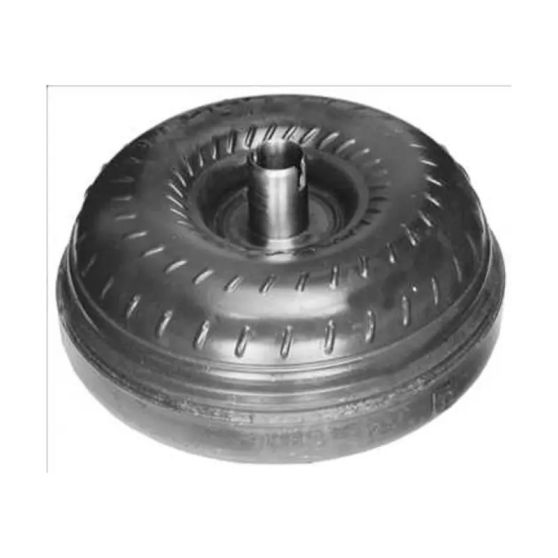

TO47 - Isuzu Mitsubishi AW30-40LE AW372 03-72 AW372L Transmission Torque Converter '87-'97

Regular Price $210.00
SKU
TO47



Isuzu Mitsubishi AW30-40LE AW372 03-72 AW372L Transmission Torque Converter '87-'97

  • Buy 5 for $199.50 each and save 5%
  • Buy 10 for $189.00 each and save 10%
Earn Up to 210 Transparts Reward Points.
Why Choose a
Rebuild Kit?
  • Includes all essential high-wear components
  • Simplifies ordering - no more hunting down part numbers
  • Trusted by top shops and repeat customers
  • Perfect for full overhauls or preventative maintenance
Make sure you've got everything - upgrade to a complete rebuild kit today. Shop Automatic Kits

Isuzu Mitsubishi AW30-40LE AW372 03-72 AW372L Transmission Torque Converter '87-'97

Lock-Up

11.375" Overall Diameter

8.50" Bolt Pattern

6 Pad Mount w/ 3/8 x 24 Thread

Slotted Hub

.750" Pilot Diameter

26 Spline

High Stall Speed

Codes: 8U, 9B, KC18D, TGO3D

Name Years



AW30-40LE 1994 - 1997



AW372 1989 - 1989



03-72 1993 - 1993



AW372L 1987 - 1993







Years Vehicle

Drive Types

1993 - 1993 Isuzu Amigo RWD, 4WD
1987 - 1990 Mitsubishi Van RWD
1997 - 1997 Mitsubishi Montero Sport RWD, 4WD
1989 - 1997 Mitsubishi Montero 4WD
Name Specs
Balance Weight Position COVEROD
Billet Cover No
Body Diameter Inches 11.38
Body Diameter mm 289.1
Bolt Circle Inches 8.5
Codes Dye/Ink Stamped 8U, 9B
Codes Paint Blue Paint Dot, Blue Circle
Cooling Shroud No
Country of Origin (Primary) US
Dimple Pitch High 7
Hub Internal Bushing No
Hub Length Inches 1.75
Hub OD Major Inches 1.498
Hub Seal Groove No
Hub Type Slotted Flanged
Lock-Up Unit Yes
Minimum Order Quantity 1
Mount Bolt Depth Inches 0.46
Mount Threads 38 x 24
Mount Type Square Pads
Number of Mounts 6
OE End Play 0.03
OE Height Inches 4.875
Package UOM Each
Pilot OD Major Inches 0.75
Pilot Type Straight
Pump Stall High
Quantity Per UOM 1
Remanufactured Yes
Stator Codes 8902 3BK
Stator Rotation Clockwise
Stator Spline Count 38
Stator Spline Depth Inches 2.24
Stator Vane Count 20
Turbine Internal Spline Count 26
Turbine Spline Depth Inches 2.95
Turbine to Pump Clearance 0.08
Weight 31
Weight UOM Pounds
With Ring Gear No

Recon Limited Warranty

All Recon by Transparts torque converters supplied are warranted to be free from manufacturing defects in material and workmanship for a period of four years or 48,000 miles from the date of purchase whichever occurs first this warranty is void, and no warranty shall apply to products that have been altered, improperly installed, maintained or repaired contaminated with oil or grease; damage as a result of overheating by accident, negligence, misuse, race or off road use or any other unauthorized use.

The above warranty is exclusive and in lieu of any other express or implied warranty of merchant ability fitness for a particular purpose or other warranties of quality, guarantees or representation, whether express or implied, except the warranty of the title.  Further, all express or implied warranties with respect to the products sold are limited to the duration of this warranty or the warranty of any third party customer, supplier, dealer, jobber, provider, manufacturer, or distributor of such products supplied hereunder, whichever is less, and specifically does not exceed and/or replace any such third party warranty.

Any and all parts returned to Transparts for warranty claim must be returned through the customer, dealer, jobber, provider, or distributor from whom it was purchased in accordance with applicable policy and procedure, with a written explanation of how the part was installed and operated. Transparts reserves the right to inspect and examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. The obligation under this warranty shall be strictly limited to replacing or crediting at Transparts option, any part found to be so defective. This warranty excludes, and transports shall not be liable for, any labor charges or other special, punitive, incidental, exemplary or consequential damages (including limitation, lost revenues, or profits), regardless of whether such damages were foreseeable and whether or not Transparts was advised of the possibility of such damages. In no event shall Transparts aggregate liability exceed the total amount paid to Transparts with respect to the product sold. The above sets for Transparts sole liability and entire obligation, and exclusive remedy for any action that is brought against Transparts.

No Core charge will be added to your order if we want to get the core back we will include a prepaid UPS call tag to retrieve it.

Any converter or combined order total over $100.00 shipping is FREE!!

More Information
ManufacturerRecon
High PerformanceNo
ConditionRemanufactured
Item ReturnsThis item can be returned
