K0100 - Superior GM Chevy Buick Cadillac Oldsmobile Pontiac 6T40 6F35 Axle Tool Kit

Superior

Axle Tool Kit

6T40 6F35

GM Chevy Buick Cadillac Oldsmobile Pontiac

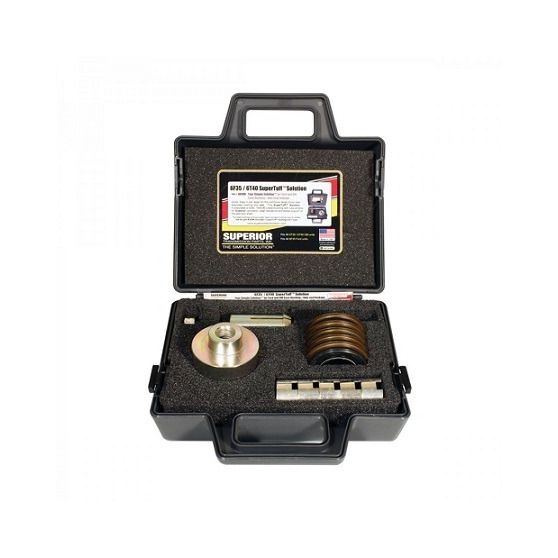

Our New K0100 includes a high-quality, 3-piece tool set designed for quick removal of the worn bushing and an indexed re-installation of the SuperTuff bushing. The two-sided driver head allows the user to install an included seal made of better-than-OEM materials.

Kit includes:

(5) axle seals and

(5) SuperTuff Teflon bushings.

Re-order Kit K099 for bushing and seal reloads ( one seal / one bushing per K099 ).

Description

6F35 / 6T40 Axle Tool Kit

Problem Solver™

Complaint:

ATF leak from axle area on the driver's side. This is usually due to a worn axle/case bushing and can result in seal failure, causing shifting complaints or slippage as is common with low fluid-level condition.

Root Cause:

Original bushing fails due to inadequate surface area, Babbitt material fatigues due mainly from stress and lack of lubrication to bushing surface and CV axle stub shaft.

The Superior Correction:

The durable SuperTuff Teflon coated bushing from Superior Transmission Parts Inc. virtually eliminates premature wear and the resulting leak at the axle seal. The new SuperTuff bushing is 23% wider than original to offer more support, Teflon coated for durability and engineered with a lube window that allows more oil in to provide better lubrication.
