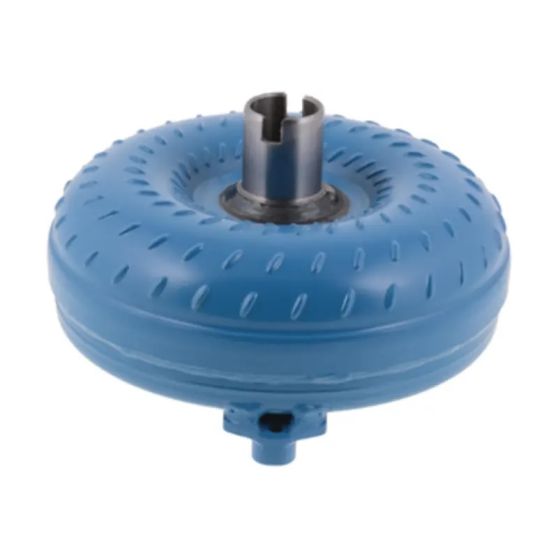

GM61CWHD - Chevy GMC 700R-4 4L60E Transmission 1985-2003

$299.00
SKU
GM61CWHD

Chevy GMC 700R-4 4L60E Lockup Transmission 1985-2003 10.2" Body Diameter, Slotted Hub Type, 3 Mounts, Pad Mount Type, 9.875" Bolt Circle, 0.825" Pilot Outside Diameter, No Ring Gear, 24207200, HBFD Stamped Codes, 2350-2750 Stall, 27 Turbine Splines, Carbon Woven Clutch Friction Type

  • Buy 5 for $284.05 each and save 5%
  • Buy 10 for $269.10 each and save 10%
Earn Up to 299 Transparts Reward Points.

Chevy GMC 700R-4 4L60E Lockup Transmission 1985-2003 10.2" Body Diameter, Slotted Hub Type, 3 Mounts, Pad Mount Type, 9.875" Bolt Circle, 0.825" Pilot Outside Diameter, No Ring Gear, 24207200, HBFD Stamped Codes, 2350-2750 Stall, 27 Turbine Splines, Carbon Woven Clutch Friction Type

Years Vehicle

Drive Types

1985 - 2003
1997 - 2003
1985 - 1985
1996 - 2000
Chevrolet S10
GMC Sonoma
GMC S15
Isuzu Hombre
FWD, RWD, 4WD
RWD, 4WD
RWD, 4WD
RWD, 4WD
Name Specs
Billet Cover
Body Diameter Inches
Bolt Circle Inches
Clutch Friction Type
Codes Dye/Ink Stamped
Hub Type
Lock-Up Unit
Mount Type
Number of Mounts
Package UOM
Pilot OD Major Inches
Pump Stall
Quantity Per UOM
Remanufactured
Turbine Internal Spline Count
Weight
Weight UOM
With Ring Gear
No
10.2
9.875
Carbon Woven
24207200, HBFD
Slotted
Yes
Pad
3
Each
0.825
2350-2750
1
Yes
27
25.5
Pounds
No

Recon Limited Warranty

All Recon by Transparts torque converters supplied are warranted to be free from manufacturing defects in material and workmanship for a period of four years or 48,000 miles from the date of purchase whichever occurs first this warranty is void, and no warranty shall apply to products that have been altered, improperly installed, maintained or repaired contaminated with oil or grease; damage as a result of overheating by accident, negligence, misuse, race or off road use or any other unauthorized use.

The above warranty is exclusive and in lieu of any other express or implied warranty of merchant ability fitness for a particular purpose or other warranties of quality, guarantees or representation, whether express or implied, except the warranty of the title.  Further, all express or implied warranties with respect to the products sold are limited to the duration of this warranty or the warranty of any third party customer, supplier, dealer, jobber, provider, manufacturer, or distributor of such products supplied hereunder, whichever is less, and specifically does not exceed and/or replace any such third party warranty.

Any and all parts returned to Transparts for warranty claim must be returned through the customer, dealer, jobber, provider, or distributor from whom it was purchased in accordance with applicable policy and procedure, with a written explanation of how the part was installed and operated. Transparts reserves the right to inspect and examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. The obligation under this warranty shall be strictly limited to replacing or crediting at Transparts option, any part found to be so defective. This warranty excludes, and transports shall not be liable for, any labor charges or other special, punitive, incidental, exemplary or consequential damages (including limitation, lost revenues, or profits), regardless of whether such damages were foreseeable and whether or not Transparts was advised of the possibility of such damages. In no event shall Transparts aggregate liability exceed the total amount paid to Transparts with respect to the product sold. The above sets for Transparts sole liability and entire obligation, and exclusive remedy for any action that is brought against Transparts.

No Core charge will be added to your order if we want to get the core back we will include a prepaid UPS call tag to retrieve it.

Any converter or combined order total over $100.00 shipping is FREE!!

More Information
ManufacturerRecon
ConditionRemanufactured
Item ReturnsThis item can be returned
