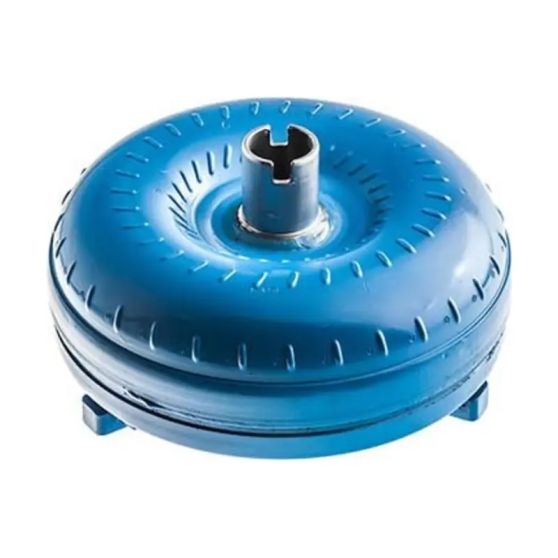

GM56 - Chevy GM Hummer 4L60E 4L65E Transmission Lockup Torque Converter 2004-2012 27 Spline

$299.00
SKU
GM56

Chevy GM Hummer 4L60E 4L65E Transmission Non PWM, Lockup Torque Converter 2004-2012 10.75" Body Diameter, Slotted Hub Type, 3 Mounts, Stepped Pads Mount Type, 9.75" Bolt Circle, 0.824" Pilot Outside Diameter, 1.6" Pilot Length, No Ring Gear, 24216770, 24238404 Stamped Code, 24216770, 24238404 Sticker Codes, Low Stall, 27 Turbine Splines.

  • Buy 5 for $284.05 each and save 5%
  • Buy 10 for $269.10 each and save 10%
Earn Up to 299 Transparts Reward Points.

Chevy GM Hummer 4L60E 4L65E Transmission Lockup, Non PWM, Torque Converter 2004-2012 10.75" Body Diameter, Slotted Hub Type, 3 Mounts, Stepped Pads Mount Type, 9.75" Bolt Circle, 0.824" Pilot Outside Diameter, 1.6" Pilot Length, No Ring Gear, 24216770, 24238404 Stamped Code, 24216770, 24238404 Sticker Codes, Low Stall, 27 Turbine Splines.

Years Vehicle

Drive Types

2004 - 2012
2004 - 2012
2009 - 2010
2006 - 2010
Chevrolet Colorado
GMC Canyon
Hummer H3T
Hummer H3
RWD, 4WD
RWD, 4WD
4WD
4WD
Name Specs
Balance Weight Position
Billet Cover
Body Diameter Inches
Body Diameter mm
Bolt Circle Inches
Bolt Radius Inches
Codes Metal/Laser Stamped
Codes Sticker
Cooling Shroud
Dimple Pitch
Hub Internal Bushing
Hub Length Inches
Hub OD Major Inches
Hub Seal Groove
Hub Type
Lock-Up Unit
Mount Threads
Mount Type
Number of Mounts
OE End Play
OE Height Inches
Package UOM
Pilot Length Inches
Pilot OD Major Inches
Pilot Type
Pump Stall
Quantity Per UOM
Remanufactured
Stator Rotation
Stator Spline Count
Stator Spline Depth Inches
Stator Vane Count
Turbine Internal Spline Count
Turbine Spline Depth Inches
Turbine to Pump Clearance
Weight
Weight UOM
With Ring Gear
COVEROD
No
10.75
273.1
9.75
4.875
24216770, 24238404
24216770, 24238404
No
Medium Low 530
No
2.15
1.747
No
Slotted
Yes
10mm X 15
Stepped Pads
3
0.02
5.915
Each
1.6
0.824
Straight
Low
1
Yes
Clockwise
27
2.48
19
27
4.18
0.14
31.8
Pounds
No

Recon Limited Warranty

All Recon by Transparts torque converters supplied are warranted to be free from manufacturing defects in material and workmanship for a period of four years or 48,000 miles from the date of purchase whichever occurs first this warranty is void, and no warranty shall apply to products that have been altered, improperly installed, maintained or repaired contaminated with oil or grease; damage as a result of overheating by accident, negligence, misuse, race or off road use or any other unauthorized use.

The above warranty is exclusive and in lieu of any other express or implied warranty of merchant ability fitness for a particular purpose or other warranties of quality, guarantees or representation, whether express or implied, except the warranty of the title.  Further, all express or implied warranties with respect to the products sold are limited to the duration of this warranty or the warranty of any third party customer, supplier, dealer, jobber, provider, manufacturer, or distributor of such products supplied hereunder, whichever is less, and specifically does not exceed and/or replace any such third party warranty.

Any and all parts returned to Transparts for warranty claim must be returned through the customer, dealer, jobber, provider, or distributor from whom it was purchased in accordance with applicable policy and procedure, with a written explanation of how the part was installed and operated. Transparts reserves the right to inspect and examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. The obligation under this warranty shall be strictly limited to replacing or crediting at Transparts option, any part found to be so defective. This warranty excludes, and transports shall not be liable for, any labor charges or other special, punitive, incidental, exemplary or consequential damages (including limitation, lost revenues, or profits), regardless of whether such damages were foreseeable and whether or not Transparts was advised of the possibility of such damages. In no event shall Transparts aggregate liability exceed the total amount paid to Transparts with respect to the product sold. The above sets for Transparts sole liability and entire obligation, and exclusive remedy for any action that is brought against Transparts.

No Core charge will be added to your order if we want to get the core back we will include a prepaid UPS call tag to retrieve it.

Any converter or combined order total over $100.00 shipping is FREE!!

More Information
ManufacturerRecon
ConditionRemanufactured
Item ReturnsThis item can be returned
