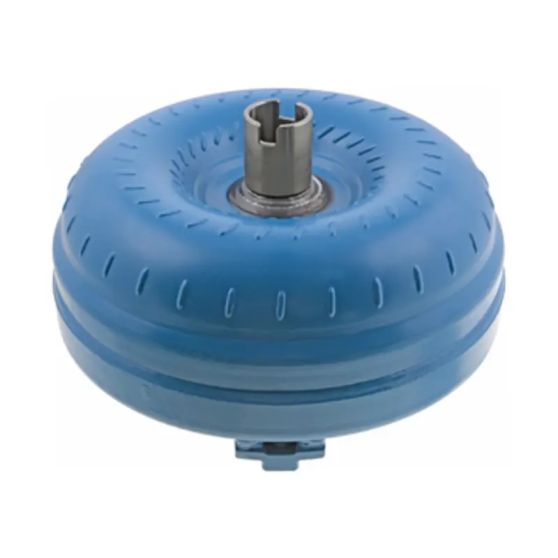

GM55 - Chevy GM Buick 4L60E 4L65E Transmission Lock Up Torque Converter
Chevy GM Buick 4L60E 4L65E Transmission Lock Up Torque Converter 12.185" Body Diameter, Slotted Hub Type, 3 Mounts, Stepped Pads Mount Type, 280mm, 11" Bolt Circle, 1.703" Pilot Outside Diameter, Pilot length 1.14" long, No Ring Gear, Medium/HIgh Stall, 30 Turbine Splines, Lock-Up 2002-2009
VJCX Sticker Codes
- Buy 5 for $280.25 each and save 5%
- Buy 10 for $265.50 each and save 10%
Chevy GM Buick 4L60E 4L65E Transmission Lock Up Torque Converter 12.185" Body Diameter, Slotted Hub Type, 3 Mounts, Stepped Pads Mount Type, 280mm, 11" Bolt Circle, 1.703" Pilot Outside Diameter, Pilot length 1.14" long, No Ring Gear, Medium/HIgh Stall, 30 Turbine Splines, Lock-Up 2002-2009
Years | Vehicle |
Drive Types |
2004 - 2007 2002 - 2006 2002 - 2009 2004 - 2005 2002 - 2006 2002 - 2009 2003 - 2008 2002 - 2004 |
Buick Rainier Chevrolet Trailblazer EXT Chevrolet Trailblazer GMC Envoy XUV GMC Envoy XL GMC Envoy Isuzu Ascender Oldsmobile Bravada |
AWD, RWD RWD, 4WD RWD, 4WD RWD, 4WD RWD, 4WD RWD, 4WD RWD, 4WD AWD, RWD |
Name | Specs |
Billet Cover Body Diameter Inches Body Diameter mm Bolt Circle Inches Bolt Radius Inches Codes Sticker Cooling Shroud Dimple Pitch Hub Internal Bushing Hub Length Inches Hub OD Major Inches Hub Seal Groove Hub Type Lock-Up Unit Mount Threads Mount Type Number of Mounts OE End Play OE Height Inches Package UOM Pilot OD Major Inches Pilot Type Pump Stall Quantity Per UOM Remanufactured Stator Rotation Stator Spline Count Stator Sprag Configuration Stator Vane Count Turbine Internal Spline Count Weight Weight UOM With Ring Gear |
No 12.185 309.5 11 5.5 VJCX No Medium High 630 No 2.11 1.747 No Slotted Yes 10mm X 15 Stepped Pads 3 0.013 6.528 Each 1.7 Straight Medium/High 1 Yes Clockwise 27 Rollers 18 30 40.64 Pounds No |
Recon Limited Warranty
All Recon by Transparts torque converters supplied are warranted to be free from manufacturing defects in material and workmanship for a period of four years or 48,000 miles from the date of purchase whichever occurs first this warranty is void, and no warranty shall apply to products that have been altered, improperly installed, maintained or repaired contaminated with oil or grease; damage as a result of overheating by accident, negligence, misuse, race or off road use or any other unauthorized use.
The above warranty is exclusive and in lieu of any other express or implied warranty of merchant ability fitness for a particular purpose or other warranties of quality, guarantees or representation, whether express or implied, except the warranty of the title. Further, all express or implied warranties with respect to the products sold are limited to the duration of this warranty or the warranty of any third party customer, supplier, dealer, jobber, provider, manufacturer, or distributor of such products supplied hereunder, whichever is less, and specifically does not exceed and/or replace any such third party warranty.
Any and all parts returned to Transparts for warranty claim must be returned through the customer, dealer, jobber, provider, or distributor from whom it was purchased in accordance with applicable policy and procedure, with a written explanation of how the part was installed and operated. Transparts reserves the right to inspect and examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. The obligation under this warranty shall be strictly limited to replacing or crediting at Transparts option, any part found to be so defective. This warranty excludes, and transports shall not be liable for, any labor charges or other special, punitive, incidental, exemplary or consequential damages (including limitation, lost revenues, or profits), regardless of whether such damages were foreseeable and whether or not Transparts was advised of the possibility of such damages. In no event shall Transparts aggregate liability exceed the total amount paid to Transparts with respect to the product sold. The above sets for Transparts sole liability and entire obligation, and exclusive remedy for any action that is brought against Transparts.
***No Core charge will be added to your order, we will include a prepaid UPS call tag to retrieve it. Please make sure the oil is drained out, simply use the box your new converter came in , put your drained core in it, and use our UPS Pre-paid call tag. Any converter or combined order total over $100.00 shipping is FREE!! ***
Manufacturer | Recon |
---|---|
Condition | Remanufactured |
Item Returns | This item can be returned |
