GM42CW - GM Chevy Buick Oldsmobile Pontiac 4T60E 4T65E 4T40E 4T45E Transmission Torque Converter '96-'10

Regular Price $235.00
SKU
GM42CW



GM Chevy Buick Oldsmobile Pontiac 4T60E 4T65E 4T40E 4T45E Transmission Torque Converter '96-'10

  • Buy 5 for $223.25 each and save 5%
  • Buy 10 for $211.50 each and save 10%
Earn Up to 235 Transparts Reward Points.
Why Choose a
Rebuild Kit?
  • Includes all essential high-wear components
  • Simplifies ordering - no more hunting down part numbers
  • Trusted by top shops and repeat customers
  • Perfect for full overhauls or preventative maintenance
Make sure you've got everything - upgrade to a complete rebuild kit today. Shop Automatic Kits

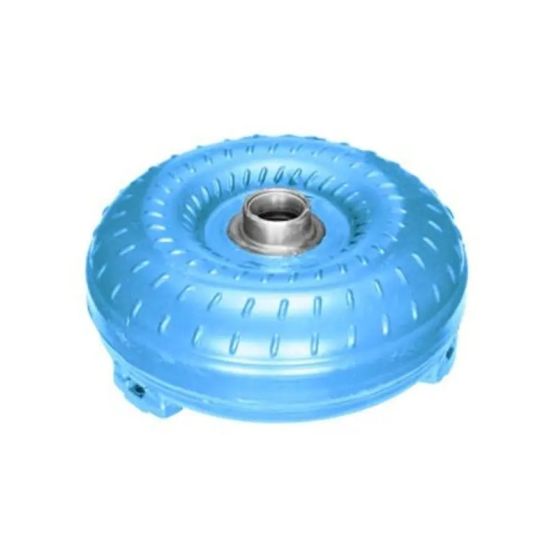

GM Chevy Buick Oldsmobile Pontiac 4T60E 4T65E 4T40E 4T45E Transmission Torque Converter '96-'10

Remanufactured

10.2" Body Diameter

No Drive Internal Hub Type

3 Mounts, Rectangular Pad Mount Type

9.375" Bolt Circle

0.825" Pilot Outside Diameter

0.95" Pilot Length

No Ring Gear

24235591, 24241866, FD, FDQB, FE, FJ Stamped Codes

Medium Stall

Name Years



4T60-E 1996 - 2000



4T65-E-HD/MN7 1997 - 2003



4T65-E 1997 - 2005



4T45-E 2010 - 2010



4T40-E 1999 - 1999



4T65-E-HD 2004 - 2004







Years Vehicle

Drive Types

1996 - 1998 Buick Skylark FWD
1996 - 1996 Buick Regal FWD
1996 - 2005 Buick Century FWD
1997 - 2005 Chevrolet Venture FWD, AWD
1996 - 2005 Chevrolet Monte Carlo FWD
1996 - 1996 Chevrolet Lumina APV FWD
1996 - 2001 Chevrolet Lumina FWD
2000 - 2005 Chevrolet Impala FWD
2010 - 2010 Chevrolet HHR FWD
1996 - 1996 Chevrolet Corsica FWD
1996 - 2004 Oldsmobile Silhouette FWD, AWD
1996 - 1997 Oldsmobile Cutlass Supreme FWD
1996 - 1996 Oldsmobile Cutlass Ciera FWD
1997 - 1999 Oldsmobile Cutlass FWD
1996 - 1998 Oldsmobile Achieva FWD
1996 - 2003 Pontiac Grand Prix FWD
1996 - 1998 Pontiac Grand Am FWD
Name Specs
Billet Cover No
Body Diameter Inches 10.2
Bolt Circle Inches 9.375
Bolt Radius Inches 4.688
Clutch Friction Type Carbon Woven
Codes Dye/Ink Stamped 24235591, 24241866, FD, FDQB, FE, FJ
Cooling Shroud No
Country of Origin (Primary) US
Dimple Pitch Medium High 630
Hub Internal Bushing Yes
Hub Length Inches 0.79
Hub OD Major Inches 1.788
Hub Seal Groove No
Hub Type No Drive Internal
Lock-Up Unit Yes
Minimum Order Quantity 1
Mount Bolt Depth Inches 0.56
Mount Threads 10mm X 15
Mount Type Rectangular Pad
Number of Mounts 3
OE End Play 0.02
OE Height Inches 4.143
Package UOM Each
Pilot Length Inches 0.95
Pilot OD Major Inches 0.825
Pilot Type Straight
Pump Stall Medium
Quantity Per UOM 1
Remanufactured Yes
Stator Codes 82
Stator Rotation Clockwise
Stator Spline Count 27
Stator Spline Depth Inches 1.135
Stator Vane Count 18
Turbine Internal Spline Count 27
Turbine Spline Depth Inches 2.83
Turbine to Pump Clearance 0.125
Weight 25
Weight UOM Pounds
With Ring Gear No

Recon Limited Warranty

All Recon by Transparts torque converters supplied are warranted to be free from manufacturing defects in material and workmanship for a period of four years or 48,000 miles from the date of purchase whichever occurs first this warranty is void, and no warranty shall apply to products that have been altered, improperly installed, maintained or repaired contaminated with oil or grease; damage as a result of overheating by accident, negligence, misuse, race or off road use or any other unauthorized use.

The above warranty is exclusive and in lieu of any other express or implied warranty of merchant ability fitness for a particular purpose or other warranties of quality, guarantees or representation, whether express or implied, except the warranty of the title.  Further, all express or implied warranties with respect to the products sold are limited to the duration of this warranty or the warranty of any third party customer, supplier, dealer, jobber, provider, manufacturer, or distributor of such products supplied hereunder, whichever is less, and specifically does not exceed and/or replace any such third party warranty.

Any and all parts returned to Transparts for warranty claim must be returned through the customer, dealer, jobber, provider, or distributor from whom it was purchased in accordance with applicable policy and procedure, with a written explanation of how the part was installed and operated. Transparts reserves the right to inspect and examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. The obligation under this warranty shall be strictly limited to replacing or crediting at Transparts option, any part found to be so defective. This warranty excludes, and transports shall not be liable for, any labor charges or other special, punitive, incidental, exemplary or consequential damages (including limitation, lost revenues, or profits), regardless of whether such damages were foreseeable and whether or not Transparts was advised of the possibility of such damages. In no event shall Transparts aggregate liability exceed the total amount paid to Transparts with respect to the product sold. The above sets for Transparts sole liability and entire obligation, and exclusive remedy for any action that is brought against Transparts.

No Core charge will be added to your order if we want to get the core back we will include a prepaid UPS call tag to retrieve it.

Any converter or combined order total over $100.00 shipping is FREE!!

More Information
ManufacturerRecon
High PerformanceNo
ConditionRemanufactured
Item ReturnsThis item can be returned
