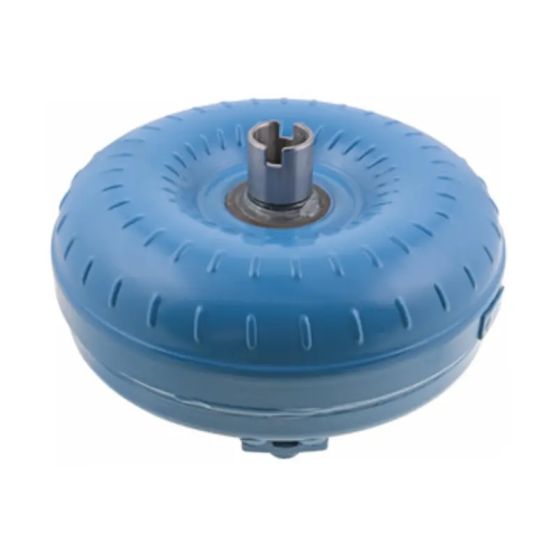

GM18AH - TH700R-4 4L60 4L60E Transmission Lock Up Torque Converter 1982-94

$245.00
SKU
GM18AH

TH700R-4 4L60 4L60E 1982-1994 Transmission Lock Up Torque Converter, 12" Body Diameter, Slotted Hub Type, 3 Mounts, 298mm Rectangular Pads Mount Type, 10.75" Bolt Circle, 1.703" Pilot Outside Diameter, No Ring Gear, DB8F, DBAF, DC8F, DCAF, CB, DB, DE, Stamped Code, 1800-2000 High Stall, 30 Turbine Splines

  • Buy 5 for $232.75 each and save 5%
  • Buy 10 for $220.50 each and save 10%
Earn Up to 245 Transparts Reward Points.

TH700R-4 4L60 4L60E 1982-1994 Transmission Lock Up Torque Converter, 12" Body Diameter, Slotted Hub Type, 3 Mounts, 298mm Rectangular Pads Mount Type, 10.75" Bolt Circle, 1.703" Pilot Outside Diameter, No Ring Gear, DB8F, DBAF, DC8F, DCAF, CB, DB, DE, Stamped Code, 1800-2000 High Stall, 30 Turbine Splines

Years Vehicle

Drive Types

1984 - 1984
1989 - 1994
1988 - 1994
1987 - 1988
1982 - 1988
1982 - 1983
1988 - 1994
1989 - 1994
1986 - 1986
1986 - 1994
1986 - 1994
1986 - 1994
1986 - 1987
1994 - 1994
1992 - 1992
1983 - 1994
1989 - 1994
1988 - 1994
1986 - 1986
1989 - 1994
1986 - 1986
1986 - 1992
1992 - 1993
1991 - 1991
1991 - 1994
1986 - 1994
1988 - 1991
1988 - 1990
1987 - 1987
1985 - 1994
1988 - 1994
1993 - 1994
1986 - 1993
1986 - 1994
1986 - 1994
1986 - 1987
1988 - 1994
1988 - 1994
1984 - 1984
1986 - 1986
1986 - 1986
1989 - 1993
1986 - 1986
 Buick Regal
Chevrolet S10 Blazer
Chevrolet S10
Chevrolet R20
Chevrolet Monte Carlo
Chevrolet Malibu
Chevrolet K2500
Chevrolet K1500
Chevrolet K10
Chevrolet G30
Chevrolet G20
Chevrolet G10
Chevrolet El Camino
Chevrolet Corvette
Chevrolet Commercial Chassis
Chevrolet Caprice
Chevrolet Camaro
Chevrolet C2500
Chevrolet C20
Chevrolet C1500
Chevrolet C10
Chevrolet Astro
GMC Typhoon
GMC Syclone
GMC Sonoma
GMC Safari
GMC S15 Jimmy
GMC S15
GMC R2500
GMC K2500
GMC K1500
GMC Jimmy
GMC G3500
GMC G2500
GMC G1500
GMC Caballero
GMC C2500
GMC C1500
Oldsmobile Cutlass Calais
Pontiac Parisienne
Pontiac Grand Prix
Pontiac Firebird
Pontiac Bonneville
RWD
RWD, 4WD
RWD, 4WD
RWD
RWD
RWD
4WD
4WD
4WD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
AWD, RWD
AWD
AWD
RWD, 4WD
AWD, RWD
RWD, 4WD
RWD, 4WD
RWD
4WD
4WD
RWD, 4WD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
Name Specs
Balance Weight Position
Billet Cover
Body Diameter Inches
Bolt Circle Inches
Bolt Radius Inches
Codes Metal/Laser Stamped
Cooling Shroud
Dimple Pitch
Hub Internal Bushing
Hub Length Inches
Hub OD Major Inches
Hub Seal Groove
Hub Type
Lock-Up Unit
Mount Threads
Mount Type
Number of Mounts
OE Height Inches
Package UOM
Pilot OD Major Inches
Pilot Type
Pump Stall
Quantity Per UOM
Remanufactured
Stator Spline Depth Inches
Turbine Internal Spline Count
Turbine Spline Depth Inches
Weight
Weight UOM
With Ring Gear
IMPELOD
No
12
10.75
5.313
DB8F, DBAF, DC8F, DCAF
No
Medium 6
No
1.9
1.746
No
Slotted
Yes
10mm X 15
Rectangular Pads
3
5.89
Each
1.703
Straight
1800-2000
1
Yes
2.33
30
3.465
44.44
Pounds
No

Recon Limited Warranty

All Recon by Transparts torque converters supplied are warranted to be free from manufacturing defects in material and workmanship for a period of four years or 48,000 miles from the date of purchase whichever occurs first this warranty is void, and no warranty shall apply to products that have been altered, improperly installed, maintained or repaired contaminated with oil or grease; damage as a result of overheating by accident, negligence, misuse, race or off road use or any other unauthorized use.

The above warranty is exclusive and in lieu of any other express or implied warranty of merchant ability fitness for a particular purpose or other warranties of quality, guarantees or representation, whether express or implied, except the warranty of the title.  Further, all express or implied warranties with respect to the products sold are limited to the duration of this warranty or the warranty of any third party customer, supplier, dealer, jobber, provider, manufacturer, or distributor of such products supplied hereunder, whichever is less, and specifically does not exceed and/or replace any such third party warranty.

Any and all parts returned to Transparts for warranty claim must be returned through the customer, dealer, jobber, provider, or distributor from whom it was purchased in accordance with applicable policy and procedure, with a written explanation of how the part was installed and operated. Transparts reserves the right to inspect and examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. The obligation under this warranty shall be strictly limited to replacing or crediting at Transparts option, any part found to be so defective. This warranty excludes, and transports shall not be liable for, any labor charges or other special, punitive, incidental, exemplary or consequential damages (including limitation, lost revenues, or profits), regardless of whether such damages were foreseeable and whether or not Transparts was advised of the possibility of such damages. In no event shall Transparts aggregate liability exceed the total amount paid to Transparts with respect to the product sold. The above sets for Transparts sole liability and entire obligation, and exclusive remedy for any action that is brought against Transparts.

No Core charge will be added to your order if we want to get the core back we will include a prepaid UPS call tag to retrieve it.

Any converter or combined order total over $100.00 shipping is FREE!!

More Information
ManufacturerRecon
ConditionRemanufactured
Item ReturnsThis item can be returned
