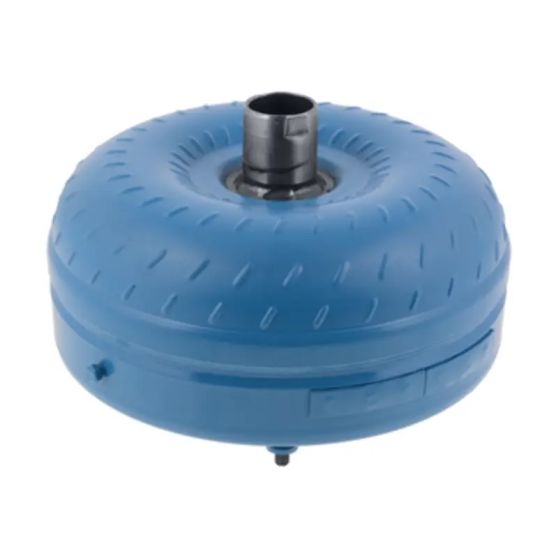

FM64 - Ford E4OD 4R100 4 Stud High Stall Transmission Torque Converter 1984-2005
Ford E4OD 4R100 Gas 4.9L, 5.0L, 5.4L, 5.8L 1984-2005 Torque Converter; Remanufactured, Single Disc Lock up, 12.75" Body Diameter, Milled Flats Hub Type, 4 Mounts, Stud Mount Type, 11.375" Bolt Circle, 1.375" Pilot Outside Diameter, No Ring Gear, A, AA, E, F, H, M, O, SS, U Stamped Codes, 2000 High Stall, 31 Turbine Splines,
- Buy 5 for $375.25 each and save 5%
- Buy 10 for $355.50 each and save 10%
Ford E4OD 4R100 Gas 4.9L, 5.0L, 5.4L, 5.8L 1984-2005 Torque Converter; Remanufactured, Single Disc Lock up, 12.75" Body Diameter, Milled Flats Hub Type, 4 Mounts, Stud Mount Type, 11.375" Bolt Circle, 1.375" Pilot Outside Diameter, No Ring Gear, A, AA, E, F, H, M, O, SS, U Stamped Codes, 2000 High Stall, 31 Turbine Splines
| Years | Vehicle |
Drive Types |
| 1999 - 2004 1989 - 1997 1999 - 2004 1989 - 1999 1990 - 2003 1998 - 2003 2000 - 2005 2003 - 2004 2000 - 2002 2000 - 2004 1990 - 2002 1984 - 1996 1989 - 1991 1989 - 2002 2003 - 2004 1990 - 1999 1990 - 2000 1990 - 1996 1998 - 2004 2002 - 2002 |
Ford F-350 Super Duty Ford F-350 Ford F-250 Super Duty Ford F-250 Ford F-150 Ford Expedition Ford Excursion Ford E-450 Super Duty Ford E-450 Econoline Super Duty Ford E-350 Super Duty Ford E-350 Econoline Club Wagon Ford E-350 Econoline Ford E-250 Econoline Club Wagon Ford E-250 Econoline Ford E-250 Ford E-150 Econoline Club Wagon Ford E-150 Econoline Ford Bronco Lincoln Navigator Lincoln Blackwood |
RWD, 4WD RWD, 4WD RWD, 4WD RWD, 4WD RWD, 4WD RWD, 4WD RWD, 4WD 4 X 2 4 X 2 RWD RWD RWD RWD RWD RWD RWD RWD 4WD RWD, 4WD RWD |
| Name | Specs |
| Body Diameter Inches Bolt Circle Inches Codes Dye/Ink Stamped Hub Type Lock-Up Unit Mount Type Number of Mounts Package UOM Pilot OD Major Inches Pump Stall Quantity Per UOM Remanufactured Turbine Internal Spline Count Weight Weight UOM With Ring Gear |
12.75 11.375 A, AA, E, F, H, M, O, SS, U Milled Flats Yes Stud 4 Each 1.375 2000 1 Yes 31 45.17 Pounds No |
Recon Limited Warranty
All Recon by Transparts torque converters supplied are warranted to be free from manufacturing defects in material and workmanship for a period of four years or 48,000 miles from the date of purchase whichever occurs first this warranty is void, and no warranty shall apply to products that have been altered, improperly installed, maintained or repaired contaminated with oil or grease; damage as a result of overheating by accident, negligence, misuse, race or off road use or any other unauthorized use.
The above warranty is exclusive and in lieu of any other express or implied warranty of merchant ability fitness for a particular purpose or other warranties of quality, guarantees or representation, whether express or implied, except the warranty of the title. Further, all express or implied warranties with respect to the products sold are limited to the duration of this warranty or the warranty of any third party customer, supplier, dealer, jobber, provider, manufacturer, or distributor of such products supplied hereunder, whichever is less, and specifically does not exceed and/or replace any such third party warranty.
Any and all parts returned to Transparts for warranty claim must be returned through the customer, dealer, jobber, provider, or distributor from whom it was purchased in accordance with applicable policy and procedure, with a written explanation of how the part was installed and operated. Transparts reserves the right to inspect and examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. The obligation under this warranty shall be strictly limited to replacing or crediting at Transparts option, any part found to be so defective. This warranty excludes, and transports shall not be liable for, any labor charges or other special, punitive, incidental, exemplary or consequential damages (including limitation, lost revenues, or profits), regardless of whether such damages were foreseeable and whether or not Transparts was advised of the possibility of such damages. In no event shall Transparts aggregate liability exceed the total amount paid to Transparts with respect to the product sold. The above sets for Transparts sole liability and entire obligation, and exclusive remedy for any action that is brought against Transparts.
No Core charge will be added to your order if we want to get the core back we will include a prepaid UPS call tag to retrieve it.
Any converter or combined order total over $100.00 shipping is FREE!!
| Manufacturer | Recon |
|---|---|
| High Performance | No |
| Condition | Remanufactured |
| Item Returns | This item can be returned |
