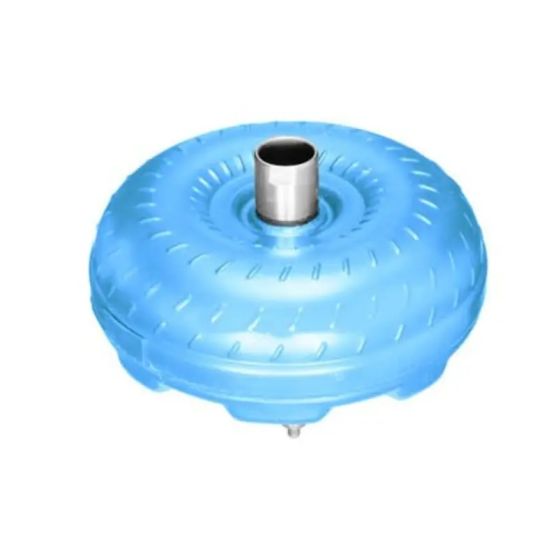

FM127 - Ford C6 Transmission Non Lockup Stock High Stall, Ribbed Primary 1974-On

$215.00
SKU
FM127

Ford C6 Transmission Non Lockup Stock 1974-On Torque Converter; Remanufactured, 12.75" Body Diameter, Milled 2 Flats Stepped Hub Type, 4 Studs Mounts, Milled Flats Mount Type, 11.44" Bolt Circle, 1.375" Pilot Outside Diameter, No Ring Gear, High Stall, 31 Turbine Splines, Ribbed Primary

  • Buy 5 for $204.25 each and save 5%
  • Buy 10 for $193.50 each and save 10%
Earn Up to 215 Transparts Reward Points.

Ford C6 Transmission Non Lockup Stock 1974-On Torque Converter; Remanufactured, 12.75" Body Diameter, Milled 2 Flats Stepped Hub Type, 4 Studs Mounts, Milled Flats Mount Type, 11.44" Bolt Circle, 1.375" Pilot Outside Diameter, No Ring Gear, High Stall, 31 Turbine Splines, Ribbed Primary

Years Vehicle

Drive Types

1974 - 1976
1974 - 1979
1976 - 1977
1973 - 1973
1974 - 1975
1975 - 1976
1974 - 1974
1974 - 1996
1974 - 1996
1975 - 1996
1974 - 1983
1977 - 1996
1975 - 1996
1975 - 1991
1975 - 1996
1975 - 1996
1975 - 1996
1975 - 1983
1975 - 1983
1974 - 1976
1978 - 1994
1977 - 1979
1977 - 1979
1974 - 1974
1973 - 1976
1974 - 1980
1977 - 1980
1977 - 1979
Ford Torino
Ford Thunderbird
Ford Ranchero
Ford Mustang
Ford LTD
Ford Gran Torino
Ford Galaxie 500
Ford F-350
Ford F-250
Ford F-150
Ford F-100
Ford E-350 Econoline Club Wagon
Ford E-350 Econoline
Ford E-250 Econoline Club Wagon
Ford E-250 Econoline
Ford E-150 Econoline Club Wagon
Ford E-150 Econoline
Ford E-100 Econoline Club Wagon
Ford E-100 Econoline
Ford Custom 500
Ford Bronco
Lincoln Mark V
Lincoln Continental
Mercury Monterey
Mercury Montego
Mercury Marquis
Mercury Grand Marquis
Mercury Cougar
RWD
RWD
RWD
RWD
RWD
RWD
RWD
RWD, 4WD
RWD, 4WD
RWD, 4WD
RWD, 4WD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
4WD
RWD
RWD
RWD
RWD
RWD
RWD
RWD
Name Specs
Billet Cover
Body Diameter Inches
Body Diameter mm
Bolt Circle Inches
Clutch Configuration
Clutch Damper Position
Cooling Shroud
Dimple Pitch
Hub Internal Bushing
Hub Length Inches
Hub OD Major Inches
Hub OD Minor Inches
Hub Seal Groove
Hub Type
Lock-Up Unit
Mount Threads
Mount Type
Number of Mounts
OE End Play
OE Height Inches
Package UOM
Pilot OD Major Inches
Pilot Type
Pump Stall
Quantity Per UOM
Remanufactured
Stator Rotation
Stator Spline Count
Stator Spline Depth Inches
Turbine Hub Seals
Turbine Internal Spline Count
Turbine Spline Depth Inches
Turbine To Piston Drive
Turbine to Pump Clearance
Weight
Weight UOM
With Ring Gear
 No
12.75
323.9
11.44
NA
NA
No
High 7
No
2.25
1.995
1.983
No
Milled 2 Flats Stepped
No
38 x 24
Milled Flats
4
0.028
5.93
Each
1.375
Straight
High
1
Yes
Clockwise
32
3.16
NA
31
4.54
NA
0.1
32.71
Pounds
No

Recon Limited Warranty

All Recon by Transparts torque converters supplied are warranted to be free from manufacturing defects in material and workmanship for a period of four years or 48,000 miles from the date of purchase whichever occurs first this warranty is void, and no warranty shall apply to products that have been altered, improperly installed, maintained or repaired contaminated with oil or grease; damage as a result of overheating by accident, negligence, misuse, race or off road use or any other unauthorized use.

The above warranty is exclusive and in lieu of any other express or implied warranty of merchant ability fitness for a particular purpose or other warranties of quality, guarantees or representation, whether express or implied, except the warranty of the title.  Further, all express or implied warranties with respect to the products sold are limited to the duration of this warranty or the warranty of any third party customer, supplier, dealer, jobber, provider, manufacturer, or distributor of such products supplied hereunder, whichever is less, and specifically does not exceed and/or replace any such third party warranty.

Any and all parts returned to Transparts for warranty claim must be returned through the customer, dealer, jobber, provider, or distributor from whom it was purchased in accordance with applicable policy and procedure, with a written explanation of how the part was installed and operated. Transparts reserves the right to inspect and examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. The obligation under this warranty shall be strictly limited to replacing or crediting at Transparts option, any part found to be so defective. This warranty excludes, and transports shall not be liable for, any labor charges or other special, punitive, incidental, exemplary or consequential damages (including limitation, lost revenues, or profits), regardless of whether such damages were foreseeable and whether or not Transparts was advised of the possibility of such damages. In no event shall Transparts aggregate liability exceed the total amount paid to Transparts with respect to the product sold. The above sets for Transparts sole liability and entire obligation, and exclusive remedy for any action that is brought against Transparts.

No Core charge will be added to your order if we want to get the core back we will include a prepaid UPS call tag to retrieve it.

Any converter or combined order total over $100.00 shipping is FREE!!

More Information
ManufacturerRecon
ConditionRemanufactured
Item ReturnsThis item can be returned
