E4OD-4R100-ZIP - FORD 4R100, E4OD Transmission Sonnax Zip Kit
Sonnax kit SC-E4OD has been discontinued and replaced by Sonnax Zip Kit E4OD-4R100-ZIP.
Formerly a popular Sure Cure® option, Sonnax Zip Kit E4OD-4R100-ZIP includes added components that extend the coverage of this kit to include later applications. And, like all Zip Kits, no reaming or special tools are required.
Sonnax Zip Kit E4OD-4R100-ZIP targets the root cause of multiple concerns by sealing critical circuit pressure losses in the valve body and pump. The kit contains uniquely-designed parts to prevent the loss of pressures within the main line, accumulator control, line pressure modulator and lockup control circuits. The kit also contains components to address overdrive planetary and piston failure, forward clutch failure, soft shifts, low clutch apply pressure, unit end play, and lube and bushing failure. No separate special tools are required for installing these parts.
The Zip Kit quick guide provides clear and easy instructions on one sheet to get the unit sealed up and back on the road quickly. In addition to general rebuilding tips and technical information, the technical booklet included in this kit contains vacuum testing information and locations at other key areas of the valve body and pump.
No reaming required
Installs quickly with no separate special tools required
Uniquely designed parts address root causes of valve body and pump concerns by sealing critical pressure circuits
Detailed technical booklet included with in-depth rebuild and inspection tips for comprehensive valve body and pump repair

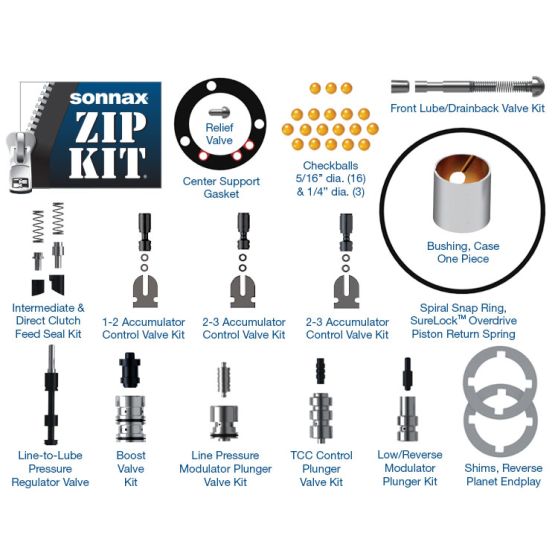

Contents
1-2 Accumulator Control Valve Kit
2-3 Accumulator Control Valve Kit
3-4 Accumulator Control Valve Kit
Boost Valve Kit
Line Pressure Modulator Plunger Valve Kit
TCC Control Plunger Valve Kit
Low/Reverse Modulator Plunger Kit
Front Lube/Drainback Valve Kit
Relief Valve
Center Support Gasket
Shims (2) Reverse Planet Endplay
Bushing Case, One Piece
Line-to-Lube Pressure Regulator Valve Kit
Checkballs (3) 1/4" dia.
Checkballs (16) 5/16" dia.
Spiral Snap Ring Sure Lock(TM) Overdrive Piston Return Spring
Intermediate & Direct Clutch Feed Seal Kit
Earn Up to 214 Transparts Reward Points.
Sonnax kit SC-E4OD has been discontinued and replaced by Sonnax Zip Kit E4OD-4R100-ZIP.
Formerly a popular Sure Cure® option, Sonnax Zip Kit E4OD-4R100-ZIP includes added components that extend the coverage of this kit to include later applications. And, like all Zip Kits, no reaming or special tools are required.
Sonnax Zip Kit E4OD-4R100-ZIP targets the root cause of multiple concerns by sealing critical circuit pressure losses in the valve body and pump. The kit contains uniquely-designed parts to prevent the loss of pressures within the main line, accumulator control, line pressure modulator and lockup control circuits. The kit also contains components to address overdrive planetary and piston failure, forward clutch failure, soft shifts, low clutch apply pressure, unit end play, and lube and bushing failure. No separate special tools are required for installing these parts.
The Zip Kit quick guide provides clear and easy instructions on one sheet to get the unit sealed up and back on the road quickly. In addition to general rebuilding tips and technical information, the technical booklet included in this kit contains vacuum testing information and locations at other key areas of the valve body and pump.
No reaming required
Installs quickly with no separate special tools required
Uniquely designed parts address root causes of valve body and pump concerns by sealing critical pressure circuits
Detailed technical booklet included with in-depth rebuild and inspection tips for comprehensive valve body and pump repair
Contents
1-2 Accumulator Control Valve Kit
2-3 Accumulator Control Valve Kit
3-4 Accumulator Control Valve Kit
Boost Valve Kit
Line Pressure Modulator Plunger Valve Kit
TCC Control Plunger Valve Kit
Low/Reverse Modulator Plunger Kit
Front Lube/Drainback Valve Kit
Relief Valve
Center Support Gasket
Shims (2) Reverse Planet Endplay
Bushing Case, One Piece
Line-to-Lube Pressure Regulator Valve Kit
Checkballs (3) 1/4" dia.
Checkballs (16) 5/16" dia.
Spiral Snap Ring Sure Lock(TM) Overdrive Piston Return Spring
Intermediate & Direct Clutch Feed Seal Kit
Manufacturer | Sonnax |
---|
