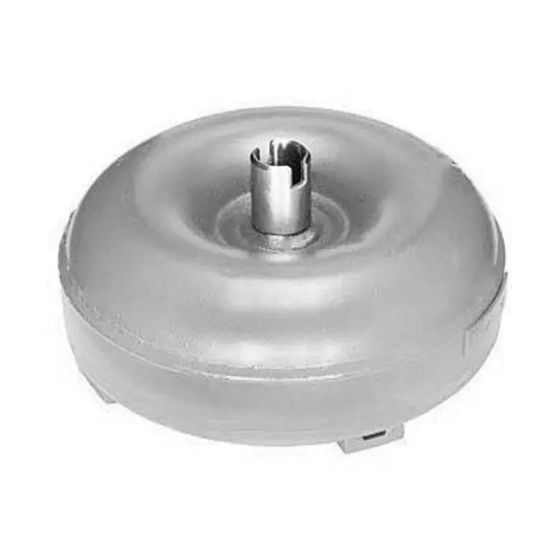

CR53L AMC Jeep Mitsubishi A904 (TF6) 6Cyl Some V8 Lock Up No Ring Gear Low Stall

AMC Jeep Mitsubishi A904 (TF6) 1978-On 6 Cyl Some V8 Torque Converter; Lock-Up, 11" Overall Diameter, 10" Bolt Pattern, 4 Pads Mount w/ 5/16 x 24 Thread, Slotted Hub, 1.810" Pilot Diameter, 26 Spline, Low Stall Speed, Off Set Bolt Pattern, No Ring Gear.

In some Later models, Chrysler changed from an offset bolt pattern to a 90° bolt pattern. FWD converters (A604 & A606) can be indentified as follows: Offset bolt pattern covers may have an "O" stamped betweeen the lugs or on the side . Some may have both. 90° bolt pattern will not have any stamping. The offset bolt pattern has one pad that is offset. Take a straight edge from the center of the pilot, to the opposite bolt hole. Or measure teh distnace between the bolts next to each other. If the measurements are the same, it is a 90 ° botl pattern, if they are different it is an offset pattern.

Recon Limited Warranty

All Recon by Transparts torque converters supplied are warranted to be free from manufacturing defects in material and workmanship for a period of four years or 48,000 miles from the date of purchase whichever occurs first this warranty is void, and no warranty shall apply to products that have been altered, improperly installed, maintained or repaired contaminated with oil or grease; damage as a result of overheating by accident, negligence, misuse, race or off road use or any other unauthorized use.

The above warranty is exclusive and in lieu of any other express or implied warranty of merchant ability fitness for a particular purpose or other warranties of quality, guarantees or representation, whether express or implied, except the warranty of the title.  Further, all express or implied warranties with respect to the products sold are limited to the duration of this warranty or the warranty of any third party customer, supplier, dealer, jobber, provider, manufacturer, or distributor of such products supplied hereunder, whichever is less, and specifically does not exceed and/or replace any such third party warranty.

Any and all parts returned to Transparts for warranty claim must be returned through the customer, dealer, jobber, provider, or distributor from whom it was purchased in accordance with applicable policy and procedure, with a written explanation of how the part was installed and operated. Transparts reserves the right to inspect and examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. The obligation under this warranty shall be strictly limited to replacing or crediting at Transparts option, any part found to be so defective. This warranty excludes, and transports shall not be liable for, any labor charges or other special, punitive, incidental, exemplary or consequential damages (including limitation, lost revenues, or profits), regardless of whether such damages were foreseeable and whether or not Transparts was advised of the possibility of such damages. In no event shall Transparts aggregate liability exceed the total amount paid to Transparts with respect to the product sold. The above sets for Transparts sole liability and entire obligation, and exclusive remedy for any action that is brought against Transparts.

No Core charge will be added to your order if we want to get the core back we will include a prepaid UPS call tag to retrieve it.

Any converter or combined order total over $100.00 shipping is FREE!!
