CR2A - Dodge Chrysler Ram Mopar 45RFE 545RFE Transmission Torque Converter '99-Up

Regular Price $259.00
SKU
CR2A



Dodge Chrysler Ram Mopar 45RFE 545RFE Transmission Torque Converter '99-Up

  • Buy 5 for $246.05 each and save 5%
  • Buy 10 for $233.10 each and save 10%
Earn Up to 259 Transparts Reward Points.
Why Choose a
Rebuild Kit?
  • Includes all essential high-wear components
  • Simplifies ordering - no more hunting down part numbers
  • Trusted by top shops and repeat customers
  • Perfect for full overhauls or preventative maintenance
Make sure you've got everything - upgrade to a complete rebuild kit today. Shop Automatic Kits

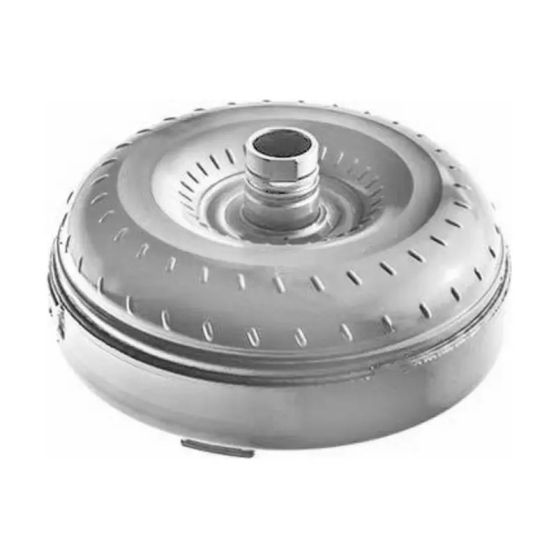

Dodge 45RFE 545RFE Transmission Remanufactured Torque Converter 1999-2012

11.625" Body Diameter

Flats with Groove Hub Type

4 Mounts, Pad Mount Type

10" Bolt Circle

1.81" Pilot Outside Diameter

0.86" Pilot Length

No Ring Gear

 352AA Stamped Codes

Low Stall, 29 Turbine Splines

Paper Clutch Friction Type, L

Transmissions



45RFE 2000 - 2003



545RFE 2002 - 2012







Years Vehicle

Drive Types

2007 - 2009 Chrysler Aspen RWD, 4WD
2003 - 2010 Dodge Ram 3500 RWD, 4WD
2003 - 2010 Dodge Ram 2500 RWD, 4WD
2003 - 2010 Dodge Ram 1500 RWD, 4WD
2000 - 2011 Dodge Durango AWD, RWD, 4WD
2000 - 2010 Dodge Dakota RWD, 4WD
2005 - 2011 Jeep Grand Cherokee AWD, RWD
2006 - 2010 Jeep Commander RWD, 4WD
2006 - 2007 Mitsubishi Raider AWD, RWD, 4WD
2011 - 2011 Ram Dakota RWD, 4WD
2011 - 2012 Ram 3500 RWD, 4WD
2011 - 2012 Ram 2500 RWD, 4WD
2011 - 2011 Ram 1500 RWD, 4WD
Name Specs
Body Diameter Inches 11.625
Bolt Circle Inches 10
Clutch Configuration Single Piston
Clutch Damper Configuration 8 Dual Springs
Clutch Damper Position Turbine
Clutch Friction Type Paper
Codes Dye/Ink Stamped 352AA
Country of Origin (Primary) US
Hub to Thrust Surface Inches 2.215
Hub Type Flats with Groove
Impeller Brazed Yes
Impeller Fin Count 31
Internal Clutch Relief Clearan 0.025
Lock-Up Unit Yes
Minimum Order Quantity 1
Mount Type Pad
Number of Mounts 4
Package UOM Each
Pilot Length Inches 0.86
Pilot OD Major Inches 1.81
Piston Drive Count 16
Pump Stall Low
Quantity Per UOM 1
Remanufactured Yes
Stator Codes 4736578AB
Stator Rotation Clockwise
Stator Spline Count 27
Stator Sprag Configuration Rollers
Stator Sprag Element Count 8
Stator Vane Configuation Medium Stall
Stator Vane Count 20
Turbine Blade Codes 572
Turbine Blade Count 29
Turbine Hub Seals No Seal
Turbine Internal Spline Count 29
Turbine To Piston Drive Tabs
Turbine to Pump Clearance 0.125
Weight 35.48
Weight UOM Pounds
With Ring Gear No

Recon Limited Warranty

All Recon by Transparts torque converters supplied are warranted to be free from manufacturing defects in material and workmanship for a period of four years or 48,000 miles from the date of purchase whichever occurs first this warranty is void, and no warranty shall apply to products that have been altered, improperly installed, maintained or repaired contaminated with oil or grease; damage as a result of overheating by accident, negligence, misuse, race or off road use or any other unauthorized use.

The above warranty is exclusive and in lieu of any other express or implied warranty of merchant ability fitness for a particular purpose or other warranties of quality, guarantees or representation, whether express or implied, except the warranty of the title.  Further, all express or implied warranties with respect to the products sold are limited to the duration of this warranty or the warranty of any third party customer, supplier, dealer, jobber, provider, manufacturer, or distributor of such products supplied hereunder, whichever is less, and specifically does not exceed and/or replace any such third party warranty.

Any and all parts returned to Transparts for warranty claim must be returned through the customer, dealer, jobber, provider, or distributor from whom it was purchased in accordance with applicable policy and procedure, with a written explanation of how the part was installed and operated. Transparts reserves the right to inspect and examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. The obligation under this warranty shall be strictly limited to replacing or crediting at Transparts option, any part found to be so defective. This warranty excludes, and transports shall not be liable for, any labor charges or other special, punitive, incidental, exemplary or consequential damages (including limitation, lost revenues, or profits), regardless of whether such damages were foreseeable and whether or not Transparts was advised of the possibility of such damages. In no event shall Transparts aggregate liability exceed the total amount paid to Transparts with respect to the product sold. The above sets for Transparts sole liability and entire obligation, and exclusive remedy for any action that is brought against Transparts.

No Core charge will be added to your order if we want to get the core back we will include a prepaid UPS call tag to retrieve it.

Any converter or combined order total over $100.00 shipping is FREE!!

More Information
ManufacturerRecon
High PerformanceNo
ConditionRemanufactured
Item ReturnsThis item can be returned
