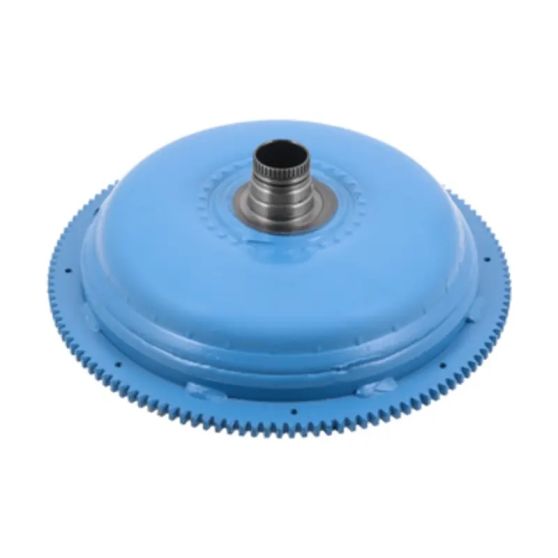

HO3001 - Honda Acura BDGA BJFA BWEA BDHA Torque Converter RJE, JET Low Stall 22 Spline

Regular Price $399.00
SKU
HO3001

Honda Acura BDGA BJFA BWEA BDHA Torque Converter, 11.25" Body Diameter, External Splined Stepped Flanged Hub Type, 8 Mounts, Threaded Ring Gear Mount Type, 12" Bolt Circle, 0.945" Pilot Outside Diameter, Ring Gear, 131 Tooth Ring Gear, 01, 04 Stamped Code, Low Stall, 22 Turbine Splines, Lock-Up RJE, JET Stamped Codes,

  • Buy 5 for $379.05 each and save 5%
  • Buy 10 for $359.10 each and save 10%
Earn Up to 399 Transparts Reward Points.
Why Choose a
Rebuild Kit?
  • Includes all essential high-wear components
  • Simplifies ordering - no more hunting down part numbers
  • Trusted by top shops and repeat customers
  • Perfect for full overhauls or preventative maintenance
Make sure you've got everything - upgrade to a complete rebuild kit today. Shop Automatic Kits

Honda Acura BDGA BJFA BWEA BDHA Torque Converter, 11.25" Body Diameter, External Splined Stepped Flanged Hub Type, 8 Mounts, Threaded Ring Gear Mount Type, 12" Bolt Circle, 0.945" Pilot Outside Diameter, Ring Gear, 131 Tooth Ring Gear, 01, 04 Stamped Code, Low Stall, 22 Turbine Splines, Lock-Up

RJE, JET Stamped Codes

 BDGA
2007 - 2008
BJFA
2006 - 2008
BWEA
2007 - 2012
BDHA
2007 - 2008
B97A
2008 - 2012
BBSA
2010 - 2012
BBTA
2010 - 2012
PSFA
2009 - 2014
BT3A
2012 - 2012
PV1A
2011 - 2013
MV2A
2011 - 2013
PN3A
2012 - 2015
PN4A
2012 - 2015





Years Vehicle

Drive Types

2007 - 2008
2007 - 2012
2006 - 2014
2012 - 2015
2011 - 2013
2012 - 2012
2010 - 2011
2008 - 2012
Acura TL
Acura RDX
Honda Ridgeline
Honda Pilot
Honda Odyssey
Honda Crosstour
Honda Accord Crosstour
Honda Accord
FWD
FWD, AWD
AWD
FWD, AWD
FWD
FWD, AWD
FWD, AWD
FWD
Name Specs
Billet Cover
Body Diameter Inches
Body Diameter mm
Bolt Circle Inches
Codes Dye/Ink Stamped
Codes Metal/Laser Stamped
Cooling Shroud
Dimple Pitch
Hub External Spline Count
Hub Internal Bushing
Hub Length Inches
Hub OD Major Inches
Hub OD Minor Inches
Hub Seal Groove
Hub Type
Lock-Up Unit
Mount Threads
Mount Type
Number of Mounts
OE Height Inches
Package UOM
Pilot OD Major Inches
Pilot Type
Pump Stall
Quantity Per UOM
Remanufactured
Ring Gear Tooth Count
Stator Codes
Stator Rotation
Stator Spline Count
Stator Spline Depth Inches
Turbine Internal Spline Count
Turbine Spline Depth Inches
Turbine to Pump Clearance
Weight
Weight UOM
With Ring Gear
No
11.25
285.8
12
RJE, JET
01, 04
No
Medium High 630
39
No
1.59
1.81
1.652
Yes
External Splined Stepped Flanged
Yes
6mm x 10
Threaded Ring Gear
8
4.125
Each
0.945
Domed
Low
1
Yes
131
RGMY G5
Clockwise
32
2.2
22
2.85
0.075
35
Pounds
Yes

Recon Limited Warranty

All Recon by Transparts torque converters supplied are warranted to be free from manufacturing defects in material and workmanship for a period of four years or 48,000 miles from the date of purchase whichever occurs first this warranty is void, and no warranty shall apply to products that have been altered, improperly installed, maintained or repaired contaminated with oil or grease; damage as a result of overheating by accident, negligence, misuse, race or off road use or any other unauthorized use.

The above warranty is exclusive and in lieu of any other express or implied warranty of merchant ability fitness for a particular purpose or other warranties of quality, guarantees or representation, whether express or implied, except the warranty of the title.  Further, all express or implied warranties with respect to the products sold are limited to the duration of this warranty or the warranty of any third party customer, supplier, dealer, jobber, provider, manufacturer, or distributor of such products supplied hereunder, whichever is less, and specifically does not exceed and/or replace any such third party warranty.

Any and all parts returned to Transparts for warranty claim must be returned through the customer, dealer, jobber, provider, or distributor from whom it was purchased in accordance with applicable policy and procedure, with a written explanation of how the part was installed and operated. Transparts reserves the right to inspect and examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. The obligation under this warranty shall be strictly limited to replacing or crediting at Transparts option, any part found to be so defective. This warranty excludes, and transports shall not be liable for, any labor charges or other special, punitive, incidental, exemplary or consequential damages (including limitation, lost revenues, or profits), regardless of whether such damages were foreseeable and whether or not Transparts was advised of the possibility of such damages. In no event shall Transparts aggregate liability exceed the total amount paid to Transparts with respect to the product sold. The above sets for Transparts sole liability and entire obligation, and exclusive remedy for any action that is brought against Transparts.

***No Core charge will be added to your order, we will include a prepaid UPS call tag to retrieve it. Please make sure the oil is drained out, simply use the box your new converter came in , put your drained core in it, and use our UPS Pre-paid call tag. Any converter or combined order total over $100.00 shipping is FREE!! ***

More Information
ManufacturerRecon
High PerformanceNo
ConditionRemanufactured
