98892-06K - Honda Acura 4 Speed 5 Spd B7TA B7YA BAYA BYBA BVGA TC Check Valve Kit Sonnax

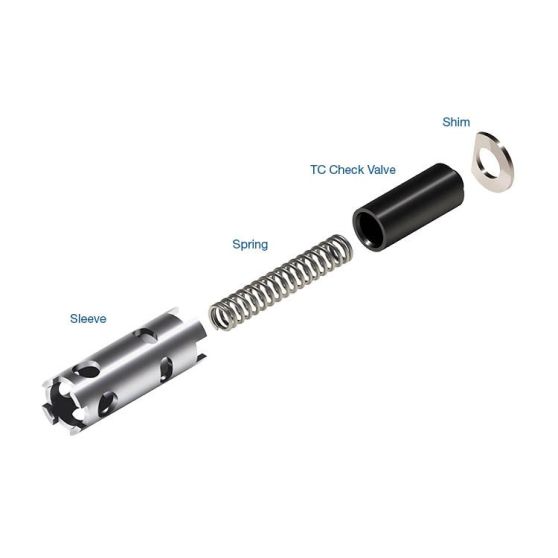

Sonnax Honda Acura Converter Charge Regulated Pressure Valve Symptoms: Low cooler flow Overheated converter TCC codes Cause: Excess wear in TC check valve bore and/or sticking check valve allows critical pressure loss that prevents normal operation. Correction: Recover hydraulic control and renew TCC operation by installing Sonnax TC check valve kit. What is Included in the kit: Valve Sleeve Spring Shim (2) 1 extra An overheated converter, TCC codes, and/or poor cooler flow are common problems in Honda/Acura vehicles equipped with four or five-speed automatic transmissions. These conditions can be caused by a worn or sticking TC check valve. The TC check valve ensures converter pressure does not become excessive during TCC apply, release or partial apply. Over time, repeated stroking of the valve creates wear areas in the casting. Depending upon specific Honda/Acura application, this valve can stroke in one casting or between multiple castings stacked together. The valve often sticks on the ledges of these wear areas or at the edges of the stacked castings. If the TC check valve sticks in the open position, converter pressure will be reduced. If stuck in the closed position, excess converter pressure can result. Severe bore wear allows critical pressure to exhaust, resulting in high or low converter pressure. Prevent valve hang-up and recover hydraulic control by installing Sonnax TC check valve kit 98892-06K. Sonnax sleeve eliminates ledges that cause valve sticking Larger sealing surface area between valve and sleeve for effective hydraulic control, even in worn castings Sleeve manufactured from highly wear-resistant aluminum No reaming or special tools required Salvages OE valve bodies machined with an edge remaining at the relief ports Honda/Acura 4/5 Speed 98892-06K Application Chart Acura 3.0CL 1996 2000 M7ZA Acura 3.0CL 1997 2000 B7ZA Acura 3.2CL 2001 2006 BGFA Acura 3.2CL 2001 2006 NGFA Acura 3.2TL 1999 1999 B7VA Acura 3.2TL 2000 2003 M7WA Acura 3.2TL 2001 2003 B7WA Acura MDX 2001 2002 MGHA Acura MDX 2001 2002 BGHA Acura TL 2004 2008 BDGA Honda Accord 1998 2002 B7XA Honda Accord 2003 2007 BAYA Honda Accord 2003 2007 MAYA Honda Odyssey 1999 2001 B7TA Honda Odyssey 1999 2001 B7YA Honda Odyssey 2002 2004 BYBA Honda Odyssey 2005 2007 BGRA Honda Odyssey 2005 2007 PGRA Honda Pilot 2003 2007 BVGA Honda Pilot 2003 2007 PVGA NOTE: This kit fits several Honda/Acura 4/5 speed models. However, model to model, the appearance of valve bodies and the location of the TC check valve bore may vary. The BVGA 03-07, 3.5L Pilot model is illustrated here. See Honda/Acura 98892-06K Application Chart for a detailed guide. In addition, certain models require a different style TC check valve. Refer to application chart for TC check valve 98892-10K if the model you are working on does not appear in 98892-06K application chart.
