77918S-1K - 4L60E 4L65E 4L70E Sonnax 300mm Stator Shaft 1999-04 280mm 7.300" Long
Regular Price $90.48
SKU
77918S-1K
4L60E 4L65E 4L70E Transmission Sonnax Stator Shaft Assembly 280mm or 300mm Converter Non Reluctor Style 1999-2004
280mm or 300mm Converter, non-reluctor style, 1999-2004, With bushings installed
Shaft Length: 7.300"

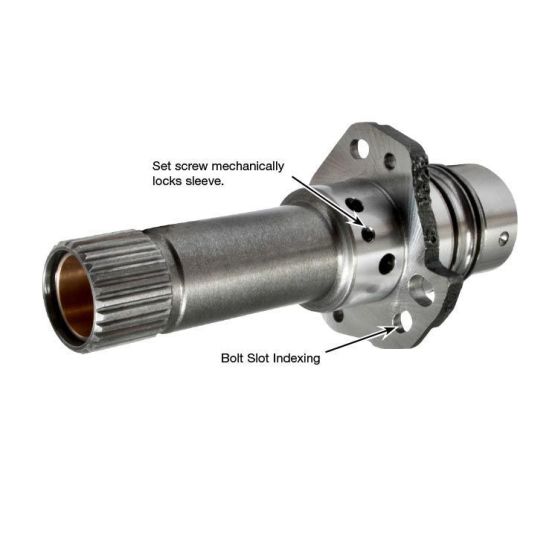

Sonnax stator support shaft assembly 77918S-1K eliminates sleeve rotation by mechanically fastening the sleeve in place with a set screw, further securing the sleeve in place with Loctite®. The assembly is 100% leak tested by Sonnax to ensure a secure seal. Shafts have slotted bolt holes for easy alignment during installation.
Set screw and Loctite eliminate sleeve rotation
Slotted bolt holes for easy installation
No machining required
Bushings installed
- Buy 5 for $85.96 each and save 5%
- Buy 10 for $81.43 each and save 10%
Earn Up to 90 Transparts Reward Points.
4L60E 4L65E 4L70E Transmission Sonnax Stator Shaft Assembly 280mm or 300mm Converter Non Reluctor Style 1999-2004
280mm or 300mm Converter, non-reluctor style, 1999-2004, With bushings installed
Shaft Length: 7.300"
Sonnax stator support shaft assembly 77918S-1K eliminates sleeve rotation by mechanically fastening the sleeve in place with a set screw, further securing the sleeve in place with Loctite®. The assembly is 100% leak tested by Sonnax to ensure a secure seal. Shafts have slotted bolt holes for easy alignment during installation.
Set screw and Loctite eliminate sleeve rotation
Slotted bolt holes for easy installation
No machining required
Bushings installed
| Manufacturer | Sonnax |
|---|---|
| High Performance | No |
| Item Returns | This item can be returned |
