77010-01 - Sonnax® GM Chevy Buick Cadillac Oldsmobile Pontiac 4L60 4L60E 4L65E 4L70E Wide Rear Sun Gear Bushing 1981-2014
Regular Price $6.30
SKU
77010-01
Sonnax®
Wide Rear Sun Gear Bushing
4L60 4L60E 4L65E 4L70E
GM Chevy Buick Cadillac Oldsmobile Pontiac
1981-2014
Sold As Quantity 5 Per Package
Earn Up to 6 Transparts Reward Points.
Sonnax®
Wide Rear Sun Gear Bushing
4L60 4L60E 4L65E 4L70E
GM Chevy Buick Cadillac Oldsmobile Pontiac
1981-2014

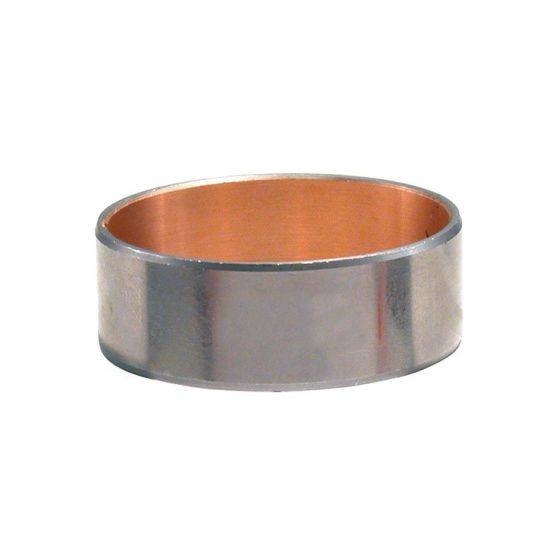

The Sonnax® wide reaction sun gear bushing 77010-01 for listed GM units, is one-and-a-half times the width of the OE version and fills the entire sun gear bushing groove. This wider bushing maximizes support. The bushing is steel-backed bronze that is precision machined to provide minimal clearance with the mating shaft.
Provides better control of lube oil
Has more support for sun gear and reaction shell
Greater longevity than OE bushing
1.5 Times wider than OE for maximum support
Warning:
Measure the sun gear bore. Installing this bushing into a bore that is smaller than 1.705”-1.706” will result in a tight fit with the mating reaction shaft.
May not work in some late-production sun gears with OE finish-in-place bushings.
Symptoms:
Bushing failure
Reaction carrier shaft damage
Cause:
Oil leakage due to inadequate support of the reaction sun gear.
Correction:
Sonnax® wide reaction sun gear bushing is more than one-and-a-half times as wide as the OE and maximizes bushing support.
Material: Steel-backed bronze
Bushing Style: Precision
Housing Bore: 1.706"
Shaft Dia.: 1.575"
Width: 0.600"
Sold As Quantity 5 Per Package
| Name | Years |
|---|---|
| 4L60-E | 1993 - 2014 |
| THM700-R4 | 1981 - 1992 |
| THM700-R4/4L60/MD8 | 1980 - 1994 |
| 4L65-E | 2001 - 2007 |
| 4L70-E | 2006 - 2009 |
| 4L60-E-HD | 2002 - 2006 |
| Years | Vehicle | Drive Types |
|---|---|---|
| 1987 - 2004 | Avanti II | RWD |
| 1991 - 1992 | Bentley Turbo R | RWD |
| 1992 - 1992 | Bentley Mulsanne | RWD |
| 1991 - 1992 | Bentley Continental | RWD |
| 1991 - 1996 | Buick Roadmaster | RWD |
| 1984 - 1984 | Buick Regal | RWD |
| 2004 - 2007 | Buick Rainier | AWD, RWD |
| 1988 - 1988 | Buick LeSabre | RWD |
| 1988 - 1989 | Buick Electra | RWD |
| 1991 - 1996 | Buick Commercial Chassis | RWD |
| 1993 - 1996 | Cadillac Fleetwood | RWD |
| 2002 - 2006 | Cadillac Escalade EXT | AWD |
| 2003 - 2006 | Cadillac Escalade ESV | AWD |
| 1999 - 2006 | Cadillac Escalade | AWD, RWD, 4WD |
| 1992 - 1996 | Cadillac Commercial Chassis | RWD |
| 1990 - 1992 | Cadillac Brougham | RWD |
| 1989 - 1991 | Chevrolet V3500 | 4WD |
| 1987 - 1988 | Chevrolet V30 | 4WD |
| 1989 - 1991 | Chevrolet V2500 Suburban | 4WD |
| 1987 - 1988 | Chevrolet V20 Suburban | 4WD |
| 1987 - 1987 | Chevrolet V20 | 4WD |
| 1989 - 1991 | Chevrolet V1500 Suburban | 4WD |
| 1987 - 1988 | Chevrolet V10 Suburban | 4WD |
| 1987 - 1987 | Chevrolet V10 | 4WD |
| 2002 - 2006 | Chevrolet Trailblazer EXT | RWD, 4WD |
| 2002 - 2009 | Chevrolet Trailblazer | AWD, RWD, 4WD |
| 1995 - 2009 | Chevrolet Tahoe | RWD, 4WD |
| 2000 - 2000 | Chevrolet Suburban 2500 | RWD, 4WD |
| 2000 - 2008 | Chevrolet Suburban 1500 | AWD, RWD, 4WD |
| 2003 - 2006 | Chevrolet SSR | RWD |
| 1999 - 2001 | Chevrolet Silverado 2500 | RWD, 4WD |
| 2007 - 2007 | Chevrolet Silverado 1500 Classic | RWD, 4WD |
| 1999 - 2013 | Chevrolet Silverado 1500 | AWD, RWD, 4WD |
| 1983 - 1994 | Chevrolet S10 Blazer | RWD, 4WD |
| 1983 - 2004 | Chevrolet S10 | FWD, RWD, 4WD |
| 1989 - 1991 | Chevrolet R3500 | RWD |
| 1987 - 1988 | Chevrolet R30 | RWD |
| 1989 - 1991 | Chevrolet R2500 Suburban | RWD |
| 1989 - 1989 | Chevrolet R2500 | RWD |
| 1987 - 1988 | Chevrolet R20 Suburban | RWD |
| 1987 - 1988 | Chevrolet R20 | RWD |
| 1989 - 1991 | Chevrolet R1500 Suburban | RWD |
| 1987 - 1988 | Chevrolet R10 Suburban | RWD |
| 1987 - 1987 | Chevrolet R10 | RWD |
| 1980 - 1981 | Chevrolet P30 | RWD |
| 1980 - 1981 | Chevrolet P20 | RWD |
| 1982 - 1988 | Chevrolet Monte Carlo | RWD |
| 1982 - 1983 | Chevrolet Malibu | RWD |
| 1982 - 1986 | Chevrolet K5 Blazer | RWD, 4WD |
| 1988 - 1989 | Chevrolet K3500 | 4WD |
| 1982 - 1986 | Chevrolet K30 | 4WD |
| 1992 - 1996 | Chevrolet K2500 Suburban | 4WD |
| 1988 - 1998 | Chevrolet K2500 | 4WD |
| 1982 - 1986 | Chevrolet K20 Suburban | 4WD |
| 1982 - 1986 | Chevrolet K20 | 4WD |
| 1992 - 1999 | Chevrolet K1500 Suburban | 4WD |
| 1988 - 1999 | Chevrolet K1500 | 4WD |
| 1982 - 1986 | Chevrolet K10 Suburban | 4WD |
| 1982 - 1986 | Chevrolet K10 | 4WD |
| 1982 - 1996 | Chevrolet Impala | RWD |
| 1983 - 1995 | Chevrolet G30 | RWD |
| 1983 - 1995 | Chevrolet G20 | RWD |
| 1983 - 1995 | Chevrolet G10 | RWD |
| 2009 - 2009 | Chevrolet Express 4500 | 4 X 2 |
| 2006 - 2009 | Chevrolet Express 3500 | RWD |
| 1996 - 2009 | Chevrolet Express 2500 | AWD, RWD |
| 1996 - 2014 | Chevrolet Express 1500 | AWD, RWD |
| 1982 - 1987 | Chevrolet El Camino | RWD |
| 1982 - 2005 | Chevrolet Corvette | RWD |
| 1991 - 1994 | Chevrolet Commercial Chassis | RWD |
| 2004 - 2012 | Chevrolet Colorado | RWD, 4WD |
| 1982 - 1996 | Chevrolet Caprice | RWD |
| 1983 - 2002 | Chevrolet Camaro | RWD |
| 1988 - 1990 | Chevrolet C3500 | RWD |
| 1982 - 1986 | Chevrolet C30 | RWD |
| 1992 - 1996 | Chevrolet C2500 Suburban | RWD |
| 1988 - 1999 | Chevrolet C2500 | RWD |
| 1982 - 1986 | Chevrolet C20 Suburban | RWD |
| 1982 - 1986 | Chevrolet C20 | RWD |
| 1992 - 1999 | Chevrolet C1500 Suburban | RWD |
| 1988 - 1999 | Chevrolet C1500 | RWD |
| 1982 - 1986 | Chevrolet C10 Suburban | RWD |
| 1982 - 1986 | Chevrolet C10 | RWD |
| 1987 - 2005 | Chevrolet Blazer | AWD, RWD, 4WD |
| 2002 - 2006 | Chevrolet Avalanche 1500 | RWD, 4WD |
| 2007 - 2008 | Chevrolet Avalanche | RWD, 4WD |
| 1985 - 2005 | Chevrolet Astro | AWD, RWD |
| 2000 - 2000 | GMC Yukon XL 2500 | RWD, 4WD |
| 2000 - 2008 | GMC Yukon XL 1500 | AWD, RWD, 4WD |
| 1992 - 2010 | GMC Yukon | AWD, RWD, 4WD |
| 1987 - 1991 | GMC V3500 | 4WD |
| 1987 - 1991 | GMC V2500 Suburban | 4WD |
| 1987 - 1987 | GMC V2500 | 4WD |
| 1987 - 1991 | GMC V1500 Suburban | 4WD |
| 1987 - 1987 | GMC V1500 | 4WD |
| 1992 - 1993 | GMC Typhoon | AWD |
| 1991 - 1991 | GMC Syclone | AWD |
| 1991 - 2004 | GMC Sonoma | RWD, 4WD |
| 1999 - 2001 | GMC Sierra 2500 | RWD, 4WD |
| 2001 - 2003 | GMC Sierra 1500 HD | RWD, 4WD |
| 2007 - 2007 | GMC Sierra 1500 Classic | AWD, RWD, 4WD |
| 1999 - 2013 | GMC Sierra 1500 | AWD, RWD, 4WD |
| 2009 - 2009 | GMC Savana 4500 | 4 X 2 |
| 2006 - 2009 | GMC Savana 3500 | RWD |
| 1996 - 2009 | GMC Savana 2500 | AWD, RWD |
| 1996 - 2014 | GMC Savana 1500 | AWD, RWD |
| 1985 - 2005 | GMC Safari | AWD, RWD |
| 1983 - 1991 | GMC S15 Jimmy | RWD, 4WD |
| 1983 - 1990 | GMC S15 | RWD, 4WD |
| 1987 - 1991 | GMC R3500 | RWD |
| 1987 - 1991 | GMC R2500 Suburban | RWD |
| 1987 - 1989 | GMC R2500 | RWD |
| 1987 - 1991 | GMC R1500 Suburban | RWD |
| 1987 - 1987 | GMC R1500 | RWD |
| 1980 - 1981 | GMC P3500 | RWD |
| 1980 - 1981 | GMC P2500 | RWD |
| 1982 - 1991 | GMC K3500 | 4WD |
| 1982 - 1996 | GMC K2500 Suburban | 4WD |
| 1982 - 1998 | GMC K2500 | 4WD |
| 1982 - 1999 | GMC K1500 Suburban | 4WD |
| 1982 - 1999 | GMC K1500 | 4WD |
| 1982 - 2001 | GMC Jimmy | AWD, RWD, 4WD |
| 1983 - 1995 | GMC G3500 | RWD |
| 1983 - 1995 | GMC G2500 | RWD |
| 1983 - 1995 | GMC G1500 | RWD |
| 2004 - 2005 | GMC Envoy XUV | RWD, 4WD |
| 2002 - 2006 | GMC Envoy XL | RWD, 4WD |
| 2002 - 2009 | GMC Envoy | RWD, 4WD |
| 2004 - 2012 | GMC Canyon | RWD, 4WD |
| 1984 - 1987 | GMC Caballero | RWD |
| 1982 - 1991 | GMC C3500 | RWD |
| 1982 - 1996 | GMC C2500 Suburban | RWD |
| 1982 - 1999 | GMC C2500 | RWD |
| 1982 - 1999 | GMC C1500 Suburban | RWD |
| 1982 - 1999 | GMC C1500 | RWD |
| 2009 - 2010 | Hummer H3T | 4WD |
| 2006 - 2010 | Hummer H3 | 4WD |
| 2003 - 2007 | Hummer H2 | 4WD |
| 1991 - 1991 | Isuzu Pickup | RWD, 4WD |
| 2007 - 2008 | Isuzu i-370 | RWD, 4WD |
| 2006 - 2006 | Isuzu i-350 | 4WD |
| 2007 - 2008 | Isuzu i-290 | RWD |
| 2006 - 2006 | Isuzu i-280 | RWD |
| 1996 - 2000 | Isuzu Hombre | RWD, 4WD |
| 2003 - 2008 | Isuzu Ascender | RWD, 4WD |
| 1984 - 1988 | Oldsmobile Cutlass Supreme | RWD |
| 1984 - 1984 | Oldsmobile Cutlass Calais | RWD |
| 1988 - 1992 | Oldsmobile Custom Cruiser | RWD |
| 1991 - 2004 | Oldsmobile Bravada | AWD, RWD |
| 1988 - 1988 | Pontiac Safari | RWD |
| 1983 - 1986 | Pontiac Parisienne | RWD |
| 2004 - 2006 | Pontiac GTO | RWD |
| 1983 - 1986 | Pontiac Grand Prix | RWD |
| 1983 - 2002 | Pontiac Firebird | RWD |
| 1983 - 1986 | Pontiac Bonneville | RWD |
| 1992 - 1992 | Rolls-Royce Silver Spur | RWD |
| 1992 - 1992 | Rolls-Royce Silver Spirit | RWD |
| 1992 - 1992 | Rolls-Royce Corniche II | RWD |
| 2005 - 2009 | Saab 9-7x | AWD |
| Manufacturer | Sonnax |
|---|---|
| High Performance | No |
| Condition | New Aftermarket |
| Item Returns | This item can be returned |
